L2X Drop-In systems

Easy to install, leakproof and powerful

Direct to the topic »

Advantages System layout Nozzle types

EWIKON L2X systems with screwed-in nozzles come completely assembled and wired and can therefore be integrated into the mould with a minimum expenditure of time. All L2X systems feature superior thermal performance and an innovative connecting technology for absolutely leakproof operation.

More information:

Brochure Product Guide

Main catalogue download area

Operating manual L2X Drop-In system

Your advantages when using EWIKON L2X Drop-In systems

+

Easy integration into the mould

+

Powerful nozzle technology with direct heating

+

Fully balanced manifolds with element technology

+

Easy-to-maintain

+

Absolutely leakproof and durable screw connection

+

Direct gating with heat conductive tip or valve gating

View technology video.

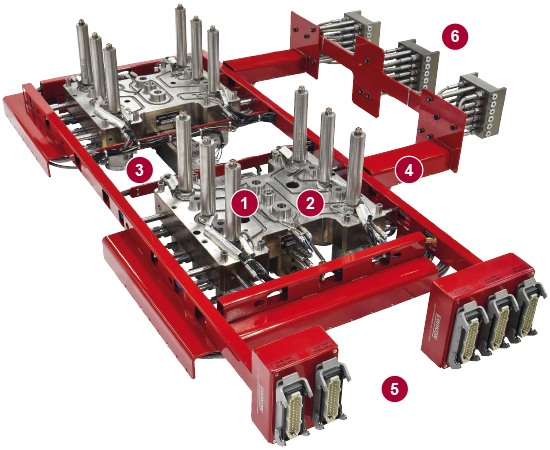

Layout of a L2X Drop-in system

1

Screwed-in hot runner nozzle with direct heating

2

Fully balanced manifold system

3

Reliable valve gate technology with cooled hydraulic drive units

4

Stable installation frame

5

Connector boxes for electric wiring

6

Connector blocks for hydraulic supply lines and cooling

Nozzle types

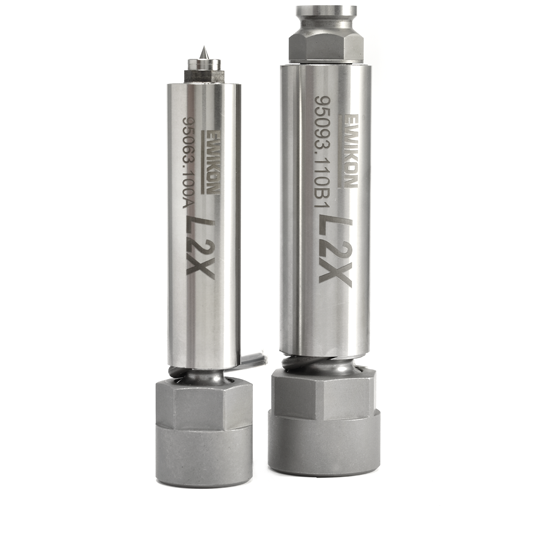

L2X nozzle

Screw connection for use in L2X Drop-In systems.
Available in various sizes for open gating and valve gating.

Go directly to main catalogue chapter:

Open nozzles:

L2X open nozzle Ø 6 mm
L2X open nozzle Ø 9 mm
L2X open nozzle Ø 12 mm
L2X open nozzle Ø 18 mm

Valve gate nozzles:

L2X valve gate nozzle Ø 6 mm
L2X valve gate nozzle Ø 9 mm
L2X valve gate nozzle Ø 12 mm
L2X valve gate nozzle Ø 18 mm
